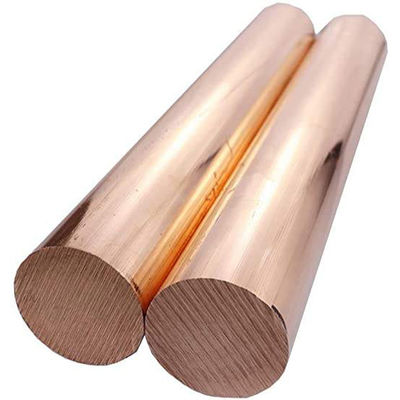

Customized Diameter Copper Bar Round Shape Household Commercial Earth

  • Customized Diameter Copper Bar Round Shape Household Commercial Earth
Lieu d'origine La Chine
Numéro de modèle barre de cuivre
Quantité de commande min 5 tonnes
Prix Contact Us
Détails d'emballage Emballage navigable standard
Délai de livraison 7-15 jours ouvrables
Conditions de paiement L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement 100000 tonnes par mois

Contactez-moi pour des échantillons gratuits et des coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez des inquiétudes, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Nom de produit Barre de cuivre industrielle Numéro de modèle C11000
Cu 99,9% Diamètre 3mm-500mm
Norme AISI, ASTM, EN, BS, GIGAOCTET, DIN, JIS Dureté 1/2Hard
Surface poli Traitement du service Soudage, Coupe
Tolérance de diamètre H9 / H11/H13, ou condition Utilisation système souterrain et au sol
Laisser un message
Description de produit

Customized Diameter Copper Bar Round Shape Household Commercial Earth



Features: high purity, fine tissue, extremely low oxygen content. No porosity, trachoma, porosity, excellent electrical conductivity, high surface precision of the electroeroded mold, after heat treatment process, the electrode is non-directional, suitable for precision beating, fine beating, with good thermal conductivity, processability, ductility, Corrosion resistance and weather resistance, etc.



It has good electrical conductivity, thermal conductivity, corrosion resistance and processing performance, and can be welded and brazed. Contains fewer impurities that reduce electrical and thermal conductivity, and a small amount of oxygen has little effect on electrical, thermal and processing properties, but it is easy to cause "hydrogen disease", so it is not suitable for processing (annealing) in a reducing atmosphere at high temperature (such as >370°) . soldering, etc.) and use



Product Name Copper Bar
Grade ASTM
C10100,C10200,C10300,C10400,C10500,C10700,C10800,
C10910,C10920,C10930,C10940,C11000,C11300,C11400,
C11500,C11600,C12000,C12200,C12300,C12500,C14200,
C14420,C14500,C14510,C14520,C14530,C14700,C15100,
C15500,C16200,C16500,C17000,C17200,C17300,C17410,
C17450,C17460,C17500,C17510,C18700,C19010,C19025,
C19200,C19210,C19400,C19500,C19600,C19700,etc.
JIS
C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,
C1720,C1990,etc.
EN
Cu-OFE, Cu-HCP, Cu-PHC, Cu-ETP, Cu-DHP, Cu-DLP;
CW009A, CW021A, CW020A, CW004A, CW024A, CW023A
DIN
OF-Cu, SE-Cu, E-Cu58, SF-Cu, SW-Cu.
Temper Soft, 1/4 Hard, 1/2 Hard, Hard, Extra Hard
Size Diameter: ≤ 500mm
Length: Straight ≤ 12000mm



Copper
99.9%
Tensile Strength
RmMpa
≥305
Yield Strength
δ0.5Mpa
205
Elongation
%
≥12
Coefficient of elasticity
Mpa
127000
Electrical Conductivity
%IACS
≥98
Hardness
HRB
35-55



Shape
Condition
Size
Straight Round Rod/ Wires
hard/half hard
Φ2-15mm
Straight Round Rod
hard/half hard
Φ3-90mm
Flat Bars/ Plates/ Sheets
hard/half hard
a2-8*b2-150mm

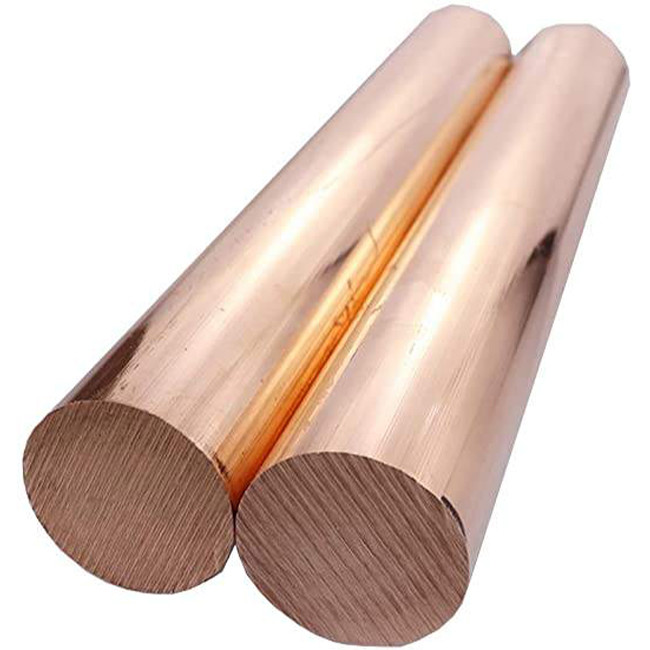

Customized Diameter Copper Bar Round Shape Household Commercial Earth 0



Before- Sale service:
1. ISO Verified Outstanding Manufacturer
2. The third party inspection: SGS, BV, CE, COC, AI and other.
3. Flexible Payment: T/T, LC, O/A, CAD, DAP, KUNLUN Bank
4. Sufficient Stock
5. Quick Delivery Time, Long time price validity.
6. Tracking picture of transport: Production, Loading and reinforcement loading Pictures
7. Rich experience Professioal Sale Team
After- Sale service:
1. Quality Guarantee after Receiving the Goods:
Offer money return or Ship new products for free if any problems happen
2. Technical Guidance for further Processing
3. VIP Service and Free Order after Accumulated Order Quantity



FAQ
Q1: Are you factory or trading company ?

A: We are manufacturer and trader. Welcome you visit our factory.
Q2: Can you guarantee your productions quality ?
A: Best quality is our principle all the time. We have 2 times QC one by one.
Our vision: to be world-class professional, reliable and outstanding steel supplier.
Q3: Do you provide samples ? Is it free or extra 2 ?
A: The sample could can provide for customer with free, but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
Q4: What is your MOQ ?
A: We welcome your trial order MOQ 25 T to be stuffed in 1*20GP
Large quantity can reduce your cost.
Q5: What is your main market?
A: Our steel products are mainly exported to Africa, Southeast Asia, the Middle East,
Central Asia, Europe, North & South America and other countries and regions.
